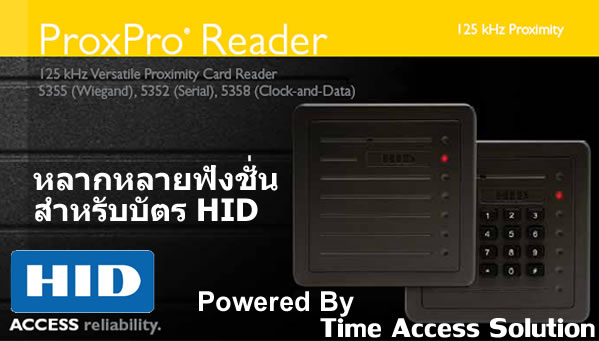

HID ProxPro Reader


The ProxPro proximity card reader weatherproof design and architecturally
attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is
ideal for applications requiring a larger read range.


- Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
- Features multicolor LED, internal or host control of the LED, and/or beeper and a beeper off switch for silent operation.
- Provides Wiegand protocol interface compatibility with all standard access
control systems.
- Offers an optional, fully integrated personal identification number keypad for
heightened security.
- Can be mounted to glass (using the optional glass mounting kit).
- For a longer read range, try the new generation ProxPro II Reader, which
provides an additional inch (2.5 cm) of read range, requires just 5 volts for
operation, and is lower-priced than the ProxPro Reader!
Typical Maximum* Read Range
ProxCard II card - up to 8 (20 cm)
ISOProx II card - up to 7 (17.5 cm)
DuoProx II card - up to 7 (17.5 cm)
Smart ISOProx II card - up to 7 (17.5 cm)
Smart DuoProx II card up to 7 (17.5 cm)
HID Proximity & MIFARE card up to 7
ProxCard Plus card - up to 3 (7.5 cm)
ProxKey II keyfob - up to 3 (7.5 cm)
MicroProx Tag up to 4 (10.2 cm)
ProxPass Active Vehicle Tag N/A
*Depending on local installation conditions.
Interfaces with all existing Wiegand protocol access control systems.
Output data in Wiegand or Clock-and-Data format, plus optional
RS232 and RS422 serial interfaces.
5.0 x 5.0 x 1.0 (12.7 x 12.7 x 2.54 cm)
Polycarbonate UL 94
Power Supply
10-28.5 VDC; Linear power supplies
recommended. Reverse voltage protection included.
Operating Temperature
-22 to 150 F (-30 to 65 C)
Transmit Frequency:
125 kHz
UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU),
C-tick (Australia, New Zealand),
SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA
(Singapore), RoHS
Cable Distance
Wiegand or Clock-and-Data interface: 500 feet (152 m)
RS-232 interface: 50 feet (15 m)
RS-422 interface: 4000 feet (1219 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent.
Additional conductors may be required for LED or beeper
control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded
cable with drain wire, or equivalent for data, plus ALPHA 1292C
two-conductor shielded or equivalent for DC power.
Part Numbers
Base Part No.: 5355 Wiegand Interface/Clock-and-Data
Base Part No.: 5352 Serial Interface
